Full electric wipe on applicator

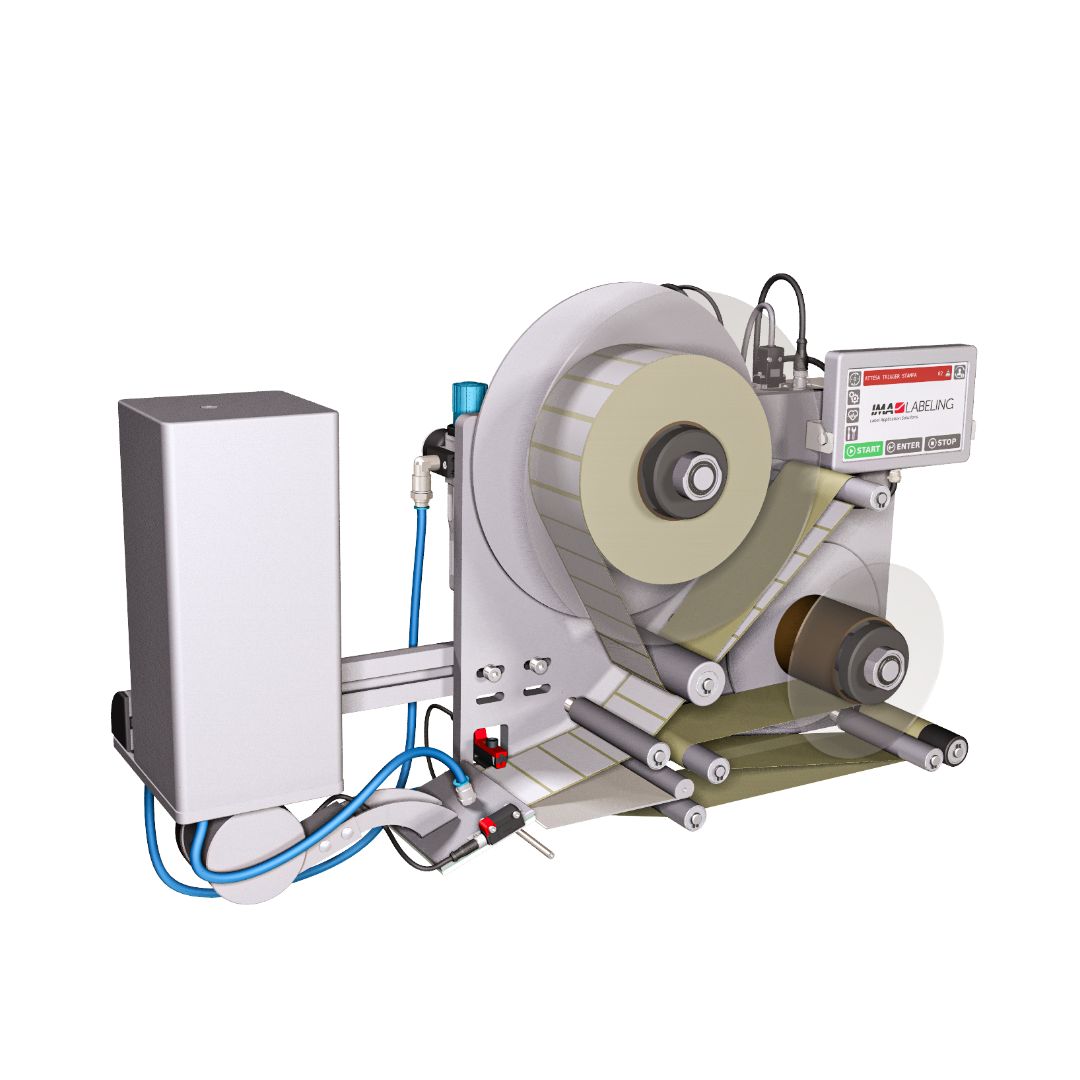

SpeedMate eSwing is designed for applications where flexibility of movement and accessibility are key.
Equipped with a swing arm applicator, it enables precise label placement on multiple sides of the product—including front, back, and lateral surfaces—even in constrained or complex layouts.
Its architecture combines controlled motion, adaptability, and reliability, making it the ideal solution for applications requiring both precision and operational flexibility.
Using tamp and tamp & blow technologies, it applies labels on stationary or moving products with controlled motion and repeatability.
A vacuum-based tamp pad ensures the label is securely held and accurately positioned during transfer, while the system maintains full control over speed, acceleration, and stroke.
Combined with dual motor liner management, intuitive touchscreen control, and LinkMate integration, SpeedMate eSwing delivers advanced application capabilities with ease of use and industrial reliability.
SpeedMate eSwing integrates an electro-pneumatic swing arm applicator designed to extend the reach of labeling operations while maintaining high positioning accuracy.
The swing arm mechanism allows the system to access different application points, enabling front, side, and back labeling within the same configuration.
Swing arm applicator enables precise labeling on front, back, and sides, even in complex or space-constrained layouts.
Controlled movement with adjustable speed, acceleration, and stroke ensures consistent performance across different applications.
Dual stepper motor system guarantees constant tension, preventing liner stretching and ensuring smooth label dispensing.
Robust industrial design with protected components ensures durability, reduced downtime, and consistent operation.
| SpeedMate eSwing | 120 mm liner / 180 mm liner |
| Available versions | Right or left |
| Typical application | On moving or static products |
| Methods of application | Tamp (with contact) Tamp & Blow (no contact) |
| Side of application | Front 2 sides Back |
| Nominal stroke of the applicator unit | 250 mm 400 mm |
| Stroke type | Fixed Programmable Variable with proximity sensor |
| Tamp pad coupling system | Fixed |
| Maximum tamp pad size (W x H) | 120 x 90 mm 120 x 160 mm 160 x 123 mm |
| Label sensor | Gap sensor, photocell |
| Accuracy of application | +/- 1 mm typical |
| Rewinding capacity | Ø up to 190 mm |
| Maximum feeding speed | 0-70 m/min |
| Frequency of application | Up to 40 cycles/min |
| Ambient temperature | 5 – 35 °C |
| Environmental conditions | 20 – 90 % relative humidity with no condensation |
| Protection class | IP 2X |
| User interface | 800 x 480 px touch screen display control panel |
| Service interface | LinkMate (on PC) |
| Standard connectors | M12 connector for the display M12 connector for the gap sensor M12 connector for the product sensor DB9 connector for the applicator unit |
| Optional connectors | USB connector Ethernet connector M12 I/O connector and cable M12 connector for the 2nd product sensor M12 connector for the low label sensor M12 connector for the beacon light |
