SpeedMate Blade Label Applicators

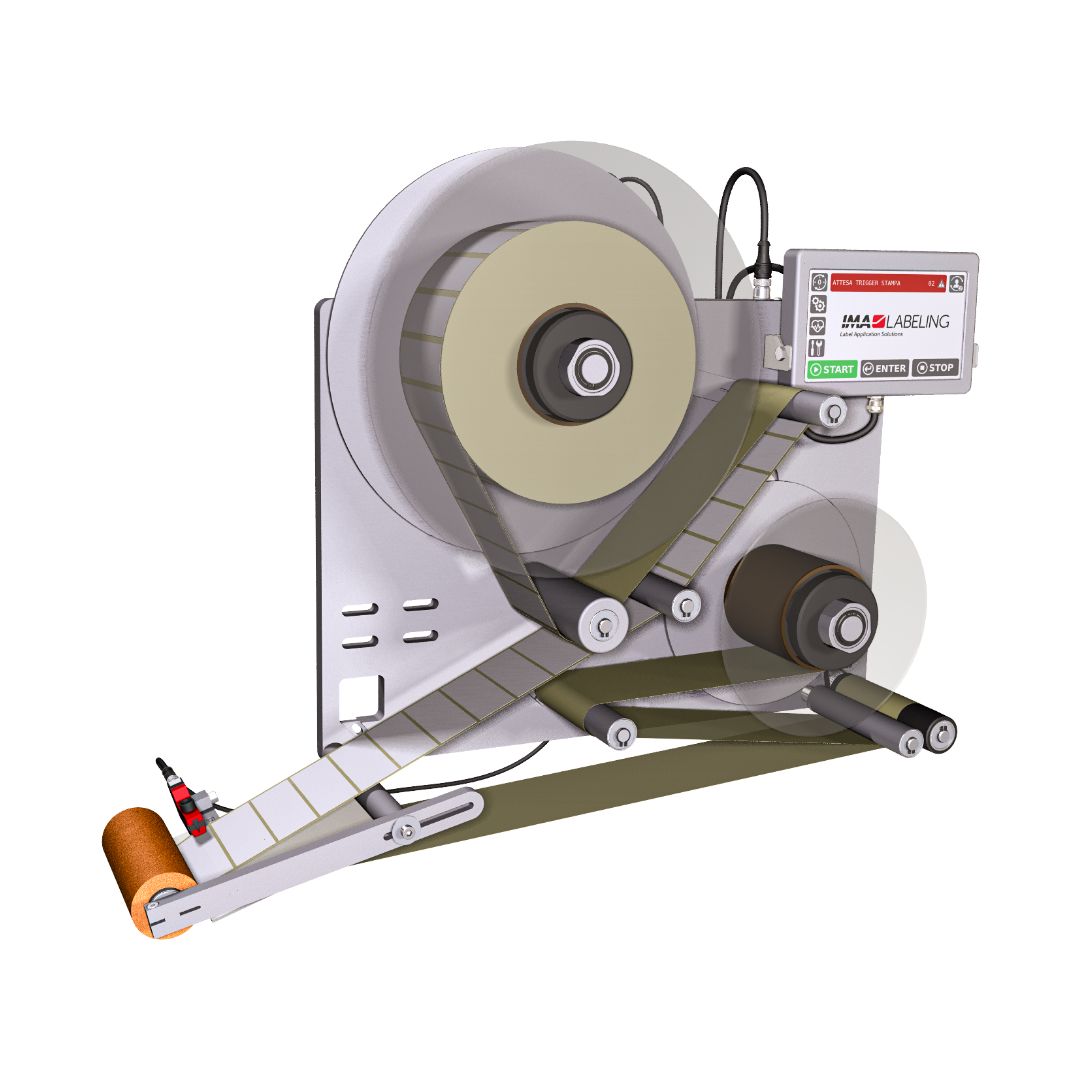

Solution overview

Full electric wipe on applicator

In high-speed production environments, labeling must be seamless, stable, and perfectly synchronized with the flow.
SpeedMate Blade is designed to meet this challenge, delivering precise wipe-on labeling on moving products without interruption.
Its versatile architecture enables top, bottom, and side applications, adapting easily to different layouts and production requirements.
At its core, a dual motor control system ensures constant liner stability, preventing tension issues and enabling smooth, consistent label dispensing even at high speeds.
Built with a robust industrial design and engineered for long-term performance, SpeedMate Blade combines accuracy, reliability, and ease of integration—supporting continuous operation in demanding production lines.

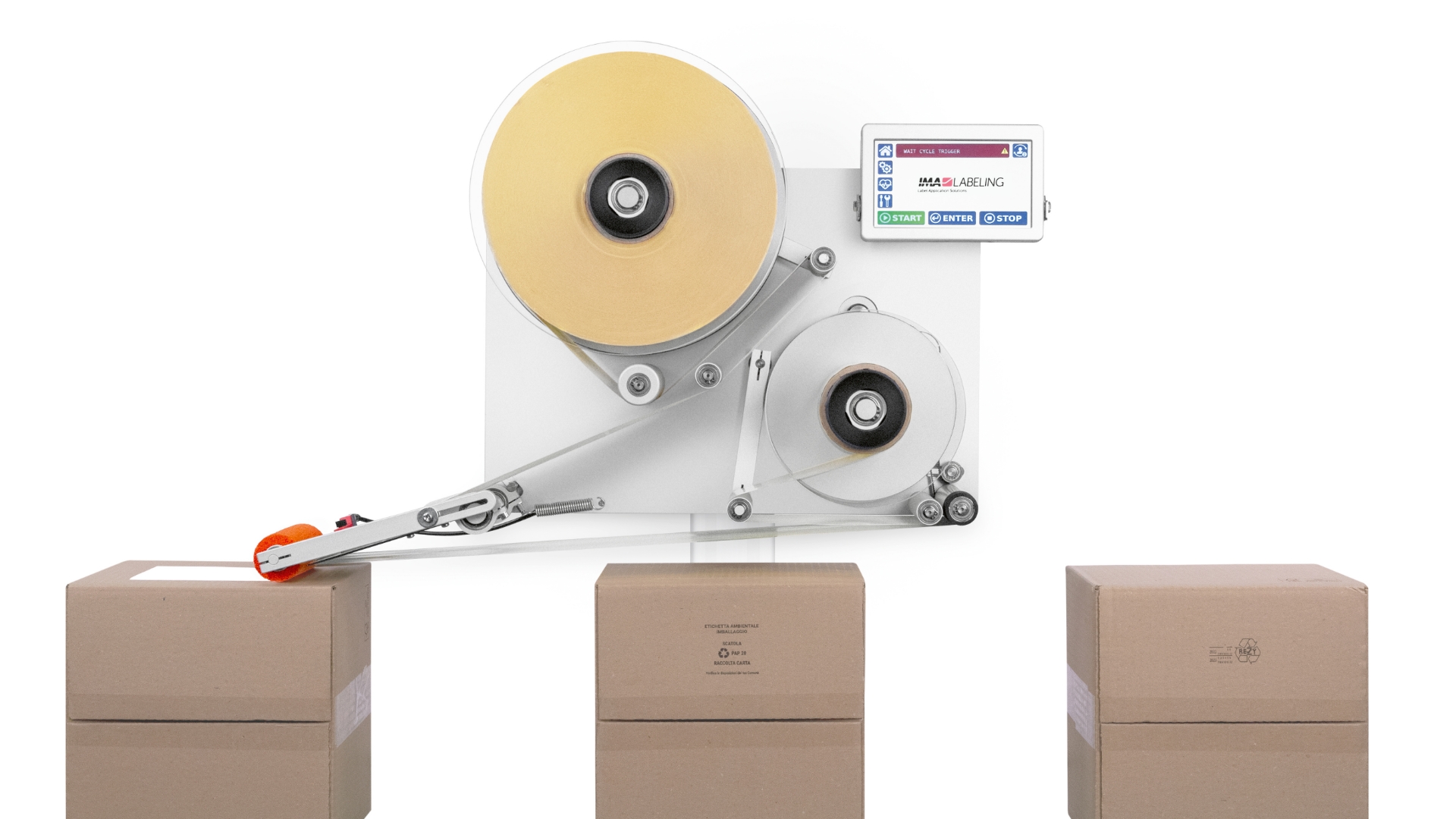

SpeedMate Blade Presentation

Precision in motion. Reliability by design.
A wipe-on system built for continuous operation, combining precise control and robust engineering to ensure consistent results at high speed.

Solution highlights

  1. Wipe-on, perfected

    Designed for smooth and consistent application, SpeedMate Blade ensures precise label placement on moving products without the need for complex application systems.
    Reliable across top, bottom, and side configurations, it adapts to a wide range of production requirements.

  2. Tension under control

    The dual stepper motor system independently manages liner tension and rewinding, maintaining constant stability throughout the labeling process.
    This prevents liner stretching, reduces the risk of tearing, and ensures consistent label dispensing over time.

  3. Speed meets precision

    Capable of reaching speeds up to 70 m/min with an accuracy of ±1 mm, SpeedMate Blade maintains high labeling quality even in demanding, high-throughput environments.
    Performance remains stable without compromising application precision.

  4. Built to last

    Engineered for industrial durability, the system features robust components, protected connections, and optimized mechanical design.
    This results in reduced maintenance needs, improved uptime, and reliable operation even in harsh production conditions

Top

Bottom

Side

Opposite Side

Technical information

SpeedMate Blade
Available versionsRight or left
with 120 mm (4”) and 180 mm (6”) liner passage
Peeling bladeFixed or spring loaded
Typical applicationOn moving products
Methods of applicationWipe-on
Side of applicationTop
Bottom
Side
Label sensorGap sensor, photocell
Accuracy of application+/- 1 mm typical
Rewinding capacityØ up to 190 mm
Maximum speed
of application		up to 70 m/min
Frequency of applicationUp to 390 labels/min
(label length 100 mm)
Up to 760 labels/min
(label length 50 mm)
Up to 1400 labels/min
(label length 25 mm)
Ambient temperature5 – 35 °C
Environmental conditions20 – 90 % relative humidity with no condensation
Protection ratingIP 2X
Operator interface800 x 480 px touch screen display control display
Service interfaceLinkMate (on PC)
Standard connectorsM12 connector for the display
M12 connector for the gap sensor
M12 connector for the product sensor
Optional connectorsUSB connector
Ethernet connector
M12 I/O connector and cable
M12 connector for the 2nd product sensor
M12 connector for the low label sensor
M12 connector for the beacon light
DB9 connector for the Markoprint option
