Multi-side pallet labeling
Pallet3 is IMA Labeling’s automatic pallet labeling solution, engineered to deliver precise and repeatable label application in logistics, manufacturing and distribution environments.
Designed for stationary pallets, it combines a programmable multi-axis applicator with a protected industrial architecture to ensure reliable product identification and full supply chain traceability.
Supporting front, side and rear applications with configurable labeling cycles, Pallet3 adapts easily to different pallet formats and production requirements while integrating seamlessly with leading print engines.
Pallet3 combines intelligent motion control with a programmable multi-axis applicator to deliver accurate label placement on one, two or three sides of the pallet.

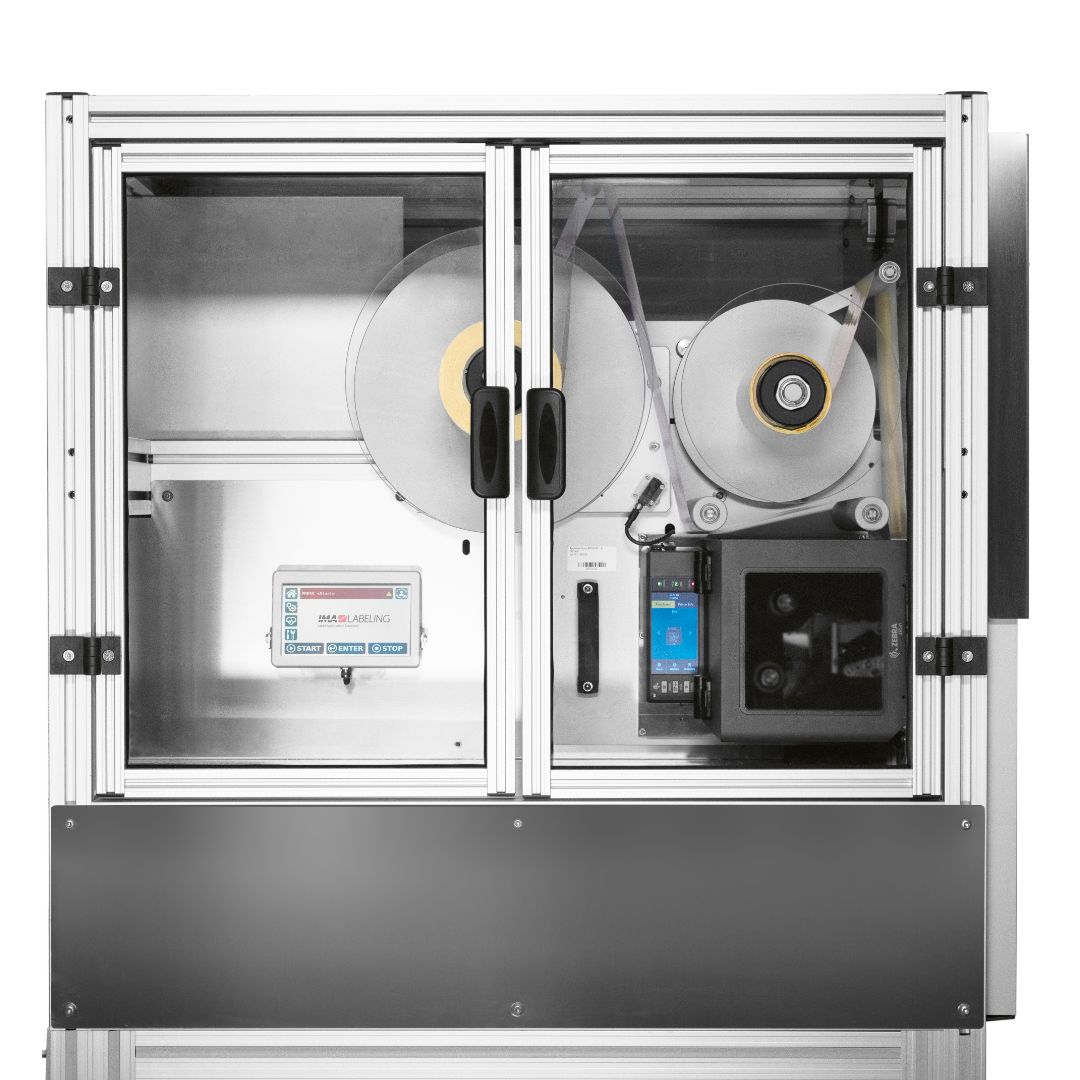

Its enclosed industrial architecture protects critical components while providing easy access for loading consumables and routine maintenance. Compatible with the leading print engines and designed for seamless integration into automated logistics environments, Pallet3 delivers the flexibility, precision and reliability required by modern end-of-line operations.
Apply labels on one, two or three sides of stationary pallets through fully programmable application cycles, ensuring maximum flexibility for different logistics requirements.
The synchronized X, Y and Z axes with articulated wrist ensure accurate and repeatable label placement across different pallet sizes and application positions.
The enclosed solution safeguards mechanical and electronic components, improving operator safety while minimizing maintenance requirements.
Compatible with Zebra, SATO, TSC, Novexx and Carl Valentin print engines, Pallet3 integrates easily into automated production and warehouse environments.
| General Specifications | |
| Available versions | Right or left |
| Typical application | On static products |
| Methods of application | Tamp & Blow (with contact) |
| Side of application | Front Side Rear |
| Nominal stroke of the X-axis (arm) | 580 mm |
| Nominal stroke of the Y-axis (carriage) | 400 mm |
| Stroke type | Fixed Programmable Variable with proximity sensor |
| Type of tamp pad | With articulated wrist With articulated wrist and rotating tamp pad (RT option) |
| Tamp pad size (W × H) | 160 × 220 mm (6.3 × 8.6 inches) |
| Accuracy of application | ±5 mm typical |
| Unwinding capacity | Ø up to 350 mm |
| Productivity | Up to 15 pallets/min (application of 1 label) Up to 4 pallets/min (application of 3 labels) |
| Ambient temperature | 5–35 °C |
| Environmental conditions | 20–90% relative humidity with no condensation |
| Protection class | IP 2X |
| User interface | 800 × 480 px touch screen display control panel |
| Service interface | LinkMate (on PC) |
| Connectors | M12 display connector M12 low paper sensor connector M12 primary product sensor connector M12 secondary product sensor connector M12 beacon light connector USB connector Ethernet connector Interface connection on terminal block |
| Reel Specifications | |
| Label size (W × H) | Standard: UNI ISO A5 148 × 210 mm (5.8 × 8.3 in) Various sizes available upon request (min. size 100 × 100 mm – 3.9 × 3.9 in) |
| Minimum label gap | 3 mm |
| Liner with pre-fracture | No |
| Reel outer diameter (RD) | 350 mm |
| Core diameter (CD) | 76 mm (3″) |
| Label rewinding | External |
| Power Supply | |
| Power supply | 110–120 VAC, 50–60 Hz 220–240 VAC, 50–60 Hz |
| Current absorption | 6.3 A / 3.15 A |
| Maximum energy consumption | 700 W maximum |
| Heat Dissipation | |
| Stand-by | 20 W |
| Maximum operating | 700 W maximum when operating |
| Compressed Air (provided by the customer) | |
| Flow | 2.5 lt/application cycle |
| Pressure | 6 bar max |
| Oils content | 1 mg/m³ |
| Dew point | ≤ -20°C |
| Maximum number of particles per m³ (1.0–5.0 μm) | ≤ 10,000 |
