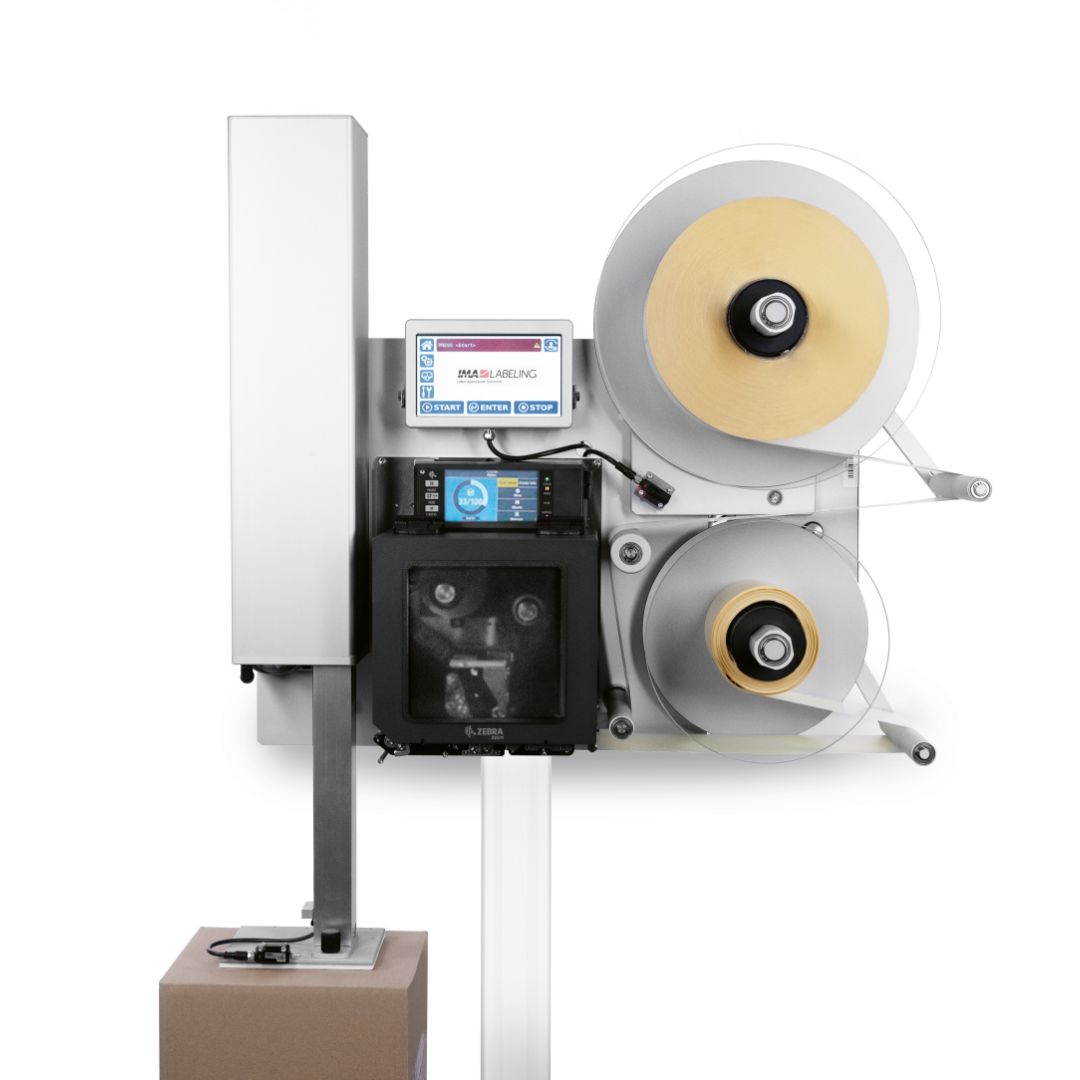

Electro-pneumatic liner applicator
FlexiMate eLinear is a modular print & apply solution designed for maximum flexibility and precise labeling performance.
Engineered to operate on both moving and stationary products, it ensures accurate application even with variable heights, thanks to its programmable electro-pneumatic applicator.
With full control over stroke, speed and acceleration, and an intuitive interface powered by LinkMate, the system adapts seamlessly to your production flow.
The motorized unwinder and rewinder maintain optimal label tension, reducing downtime and ensuring consistent print quality. Its modular design allows easy configuration to meet a wide range of applications and integration needs.
Highlights
The electro-pneumatic applicator combines speed and precision for reliable label application on moving and stationary products. Delivering consistent performance across a wide range of production conditions.
Highlights
Automatically adapts to variable product heights thanks to programmable stroke control. Ensuring precise application while reducing cycle time and improving efficiency.
Highlights
Modular design enables flexible configuration to match your application needs. Adapting easily to different layouts, products and production requirements.
Highlights
Controlled application ensures consistent contact and high repeatability. Delivering accurate labeling results across every cycle.
| FlexiMate eLinear | 4″ Liner / 6″ Liner |
| Available versions | Right or left |
| Typical application | On moving or static products |
| Methods of application | Tamp (with contact) Tamp & Blow (no contact) |
| Side of application | Top Bottom Side |
| Nominal stroke of the applicator unit | 250 mm 350 mm 500 mm 800 mm |
| Stroke type | Fixed Programmable Variable with proximity sensor Variable with laser measurement sensor |
| Tamp pad coupling system | Fixed |
| Maximum tamp pad size (W x H) | 120 x 90 mm 120 x 160 mm 160 x 123 mm 160 x 220 mm 4″ x 8″ |
| Accuracy of application | +/- 1 mm typical |
| Rewinding capacity | Ø up to 190 mm |
| Frequency of application | Up to 60 cycles/min |
| Ambient temperature | 5 – 35 °C |
| Environmental conditions | 20 – 90 % relative humidity with no condensation |
| Protection class | IP 2X |
| User interface | Control display, LCD, 20 x 2 lines and 5 buttons; Control display, touch screen 800 x 480 px |
| Service interface | LinkMate (on PC) |
| Standard connectors | M12 display connector M12 low paper sensor connector M12 primary product sensor connector M12 secondary product sensor connector M12 beacon light connector USB connector DB9 applicator unit connector DB15 print engine connector DB25 I/O interface connector |
| Optional connectors | Ethernet connector M12 encoder/analog connector M12 bus extension connector |
