Fleximate eCorner Print Apply

Solution overview

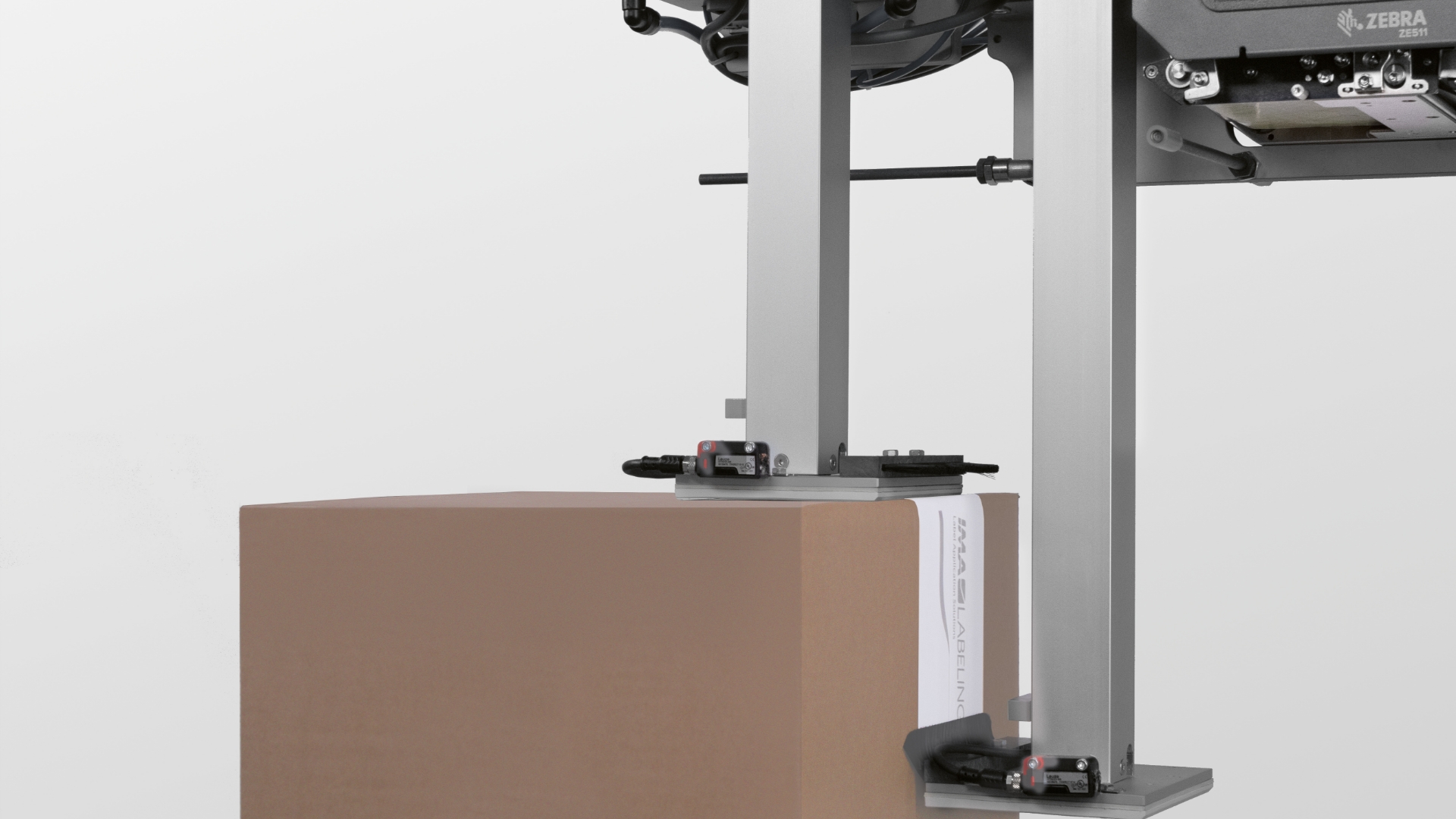

Electro-pneumatic liner applicators for corner-wrap

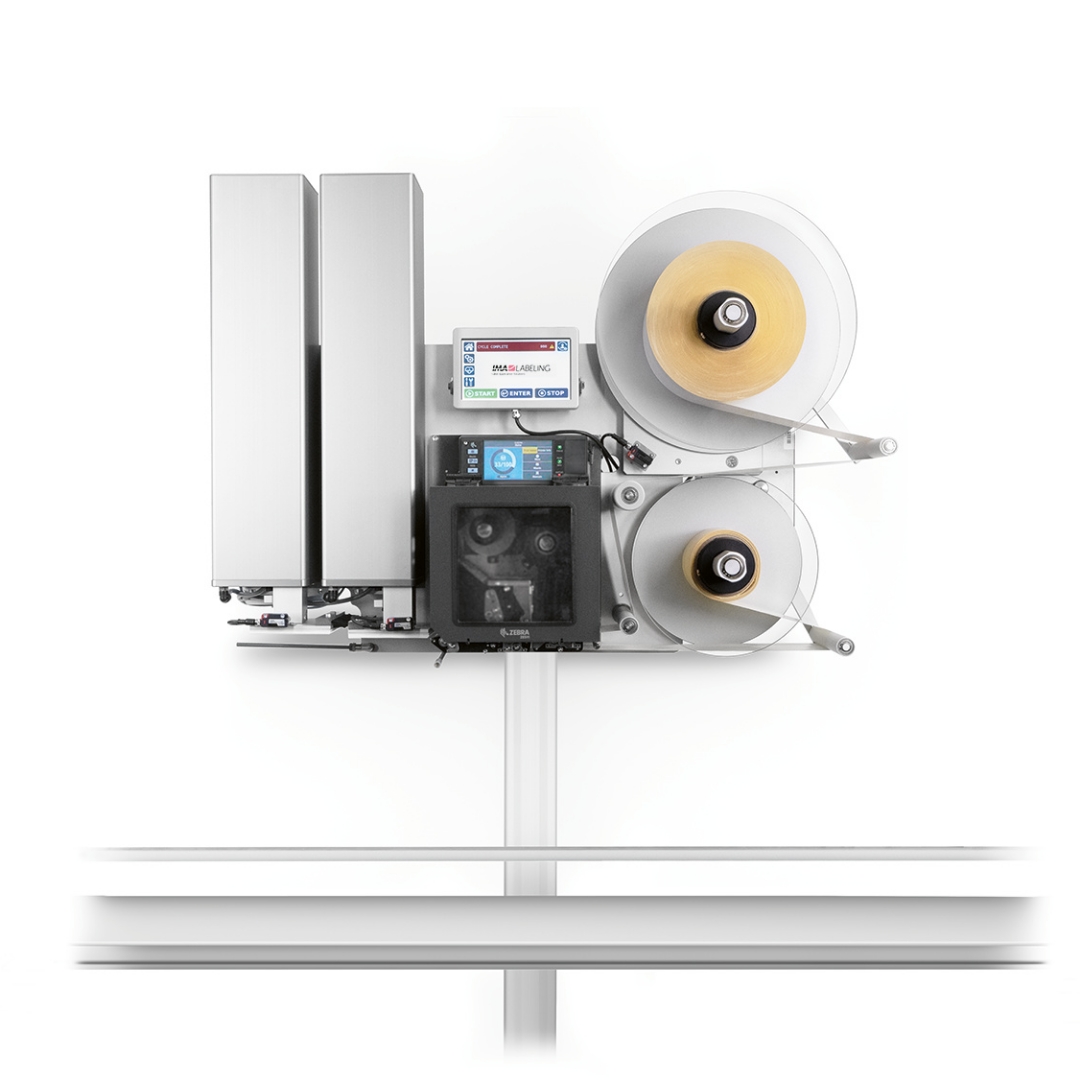

FlexiMate eCorner is a modular print & apply solution designed to deliver precise corner labeling across adjacent surfaces.
By synchronizing label application across edges, it ensures consistent alignment and high readability, even on moving products.
The controlled application process guarantees accurate positioning and reliable adhesion, supporting traceability and compliance in demanding production environments.
Its modular architecture allows easy integration into different layouts, adapting to a wide range of applications and industry requirements.

Fleximate eCorner
Presentation

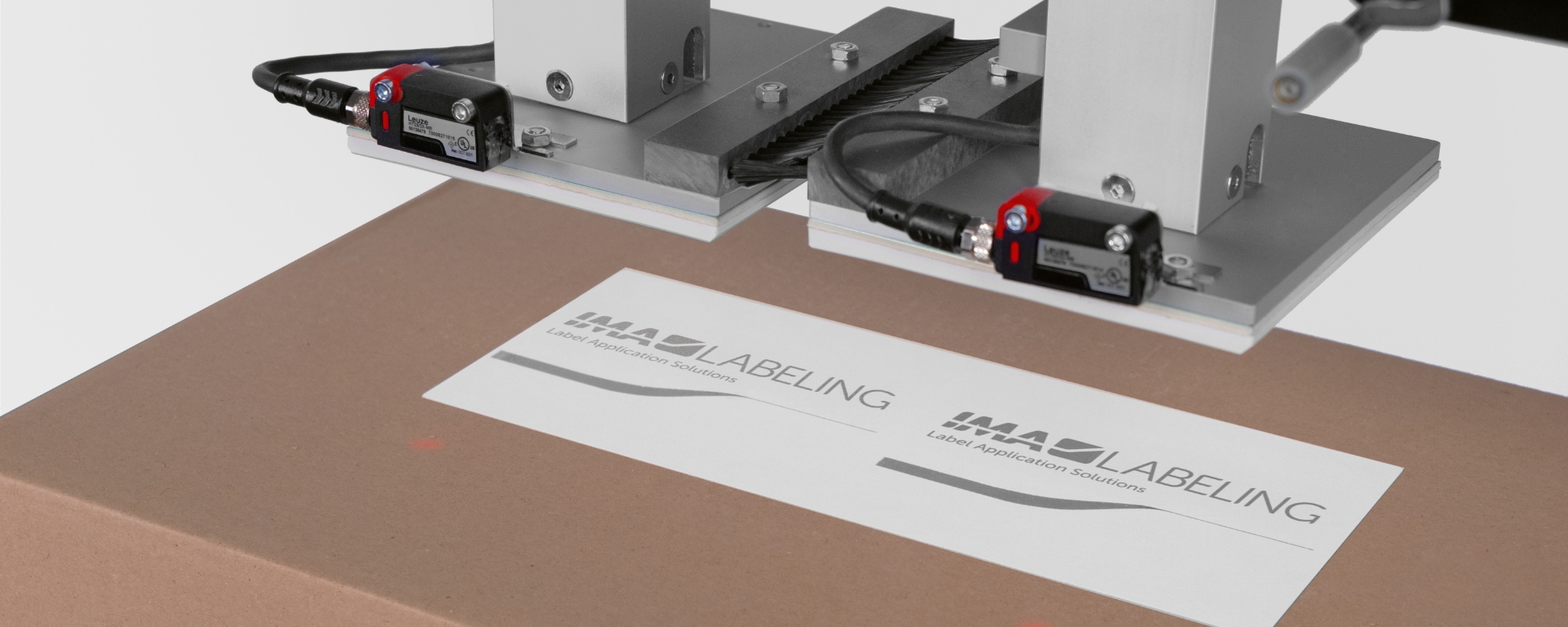

Seamless labeling across edges, with no compromise on precision.
FlexiMate eCorner ensures accurate alignment and consistent readability across adjacent surfaces, supporting traceability and compliance in critical applications.

Solution highlights

  1. Seamless edge labeling

    Ensures continuous label application across adjacent surfaces.
    Delivering precise alignment and high readability across edges.

  2. Synchronized application

    Coordinates label placement across multiple sides in a single cycle.
    Ensuring continuity while reducing application errors.

  3. Controlled label placement

    Controlled application ensures accurate positioning and optimal adhesion.
    Delivering consistent results across different products and production conditions

  4. Modular integration

    Modular design enables easy integration into different production layouts.
    Adapting to a wide range of applications and industry requirements.

Corner Front-Opposite Side

Corner Front-Side

Corner Opposite-Side

Corner Side-Back

Corner Top-Back

Corner Top-Front

Corner Top-Opposite

Corner Top-Side

Technical information

FlexiMate eCorner4″ Liner / 6″ Liner
Available versionsRight or left
Typical applicationOn static products
Side of applicationFront angle in the direction of movement
Rear angle in direction of movement
Nominal stroke of the
applicator unit		250 mm
350 mm
500 mm
Stroke typeProgrammable
Variable with proximity sensor
Tamp pad coupling systemQuick Exchange FlexPad
Accuracy of application+/- 1 mm typical
Rewinding capacityØ up to 250 mm
Frequency of applicationUp to 15 cycles/min
Ambient temperature5 – 35 °C
Environmental conditions20 – 90 % relative humidity with no condensation
Protection classIP 2X
User interface800 x 480 px touch screen display control panel
Service interfaceLinkMate (on PC)
Standard connectorsM12 display connector
M12 low paper sensor connector
M12 primary product sensor connector
M12 secondary product sensor connector
M12 beacon light connector
USB connector
DB9 applicator unit connector
DB15 print engine connector
DB25 I/O interface connector
Optional connectorsEthernet connector
