Fleximate eBlade Print Apply

Solution overview

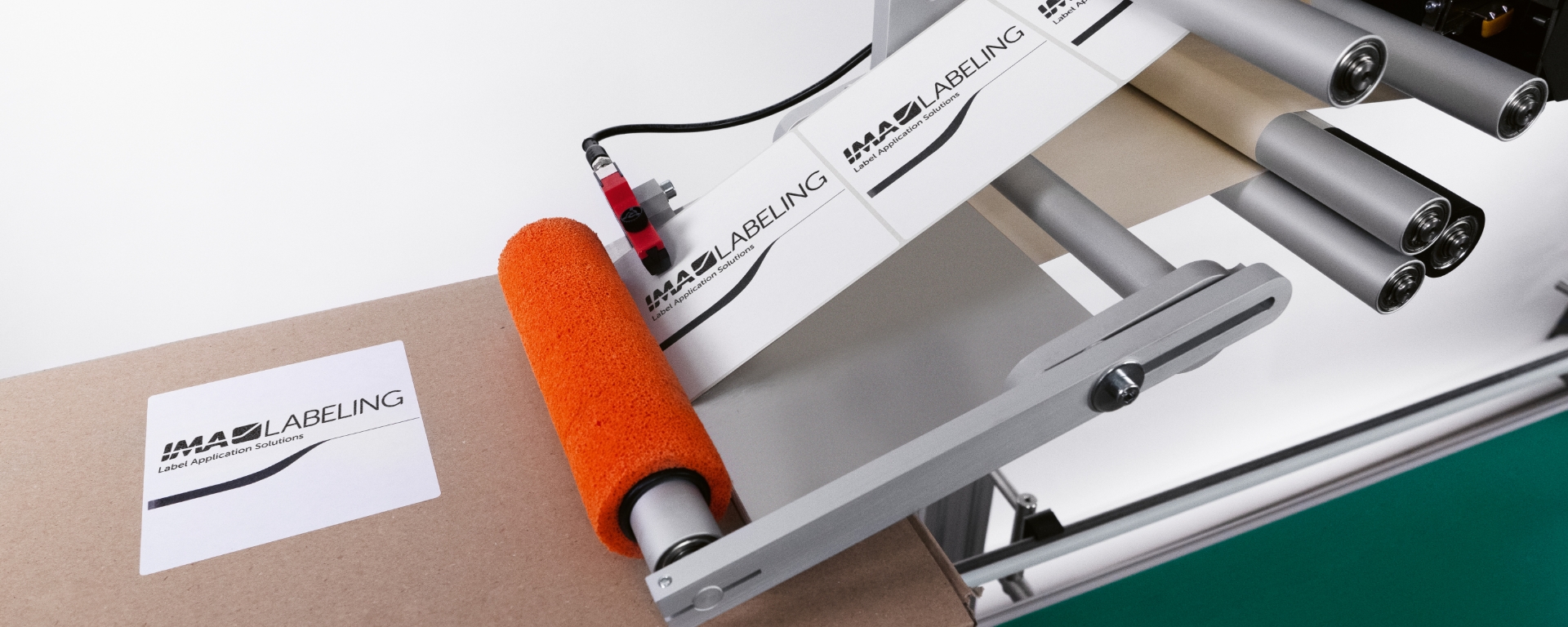

Full electric wipe on applicator

FlexiMate eBlade is a high-performance print & apply solution designed to deliver speed, stability and efficiency in high-throughput environments.
Its wipe-on technology, combined with a buffered labeling process, ensures continuous operation by separating printing from application.
Labels are always ready when needed, enabling smooth and reliable performance even at variable line speeds.
This makes eBlade the ideal solution for high-speed applications where process stability matters more than real-time printing.
Modular by design, it integrates seamlessly into different production layouts, adapting to a wide range of applications.

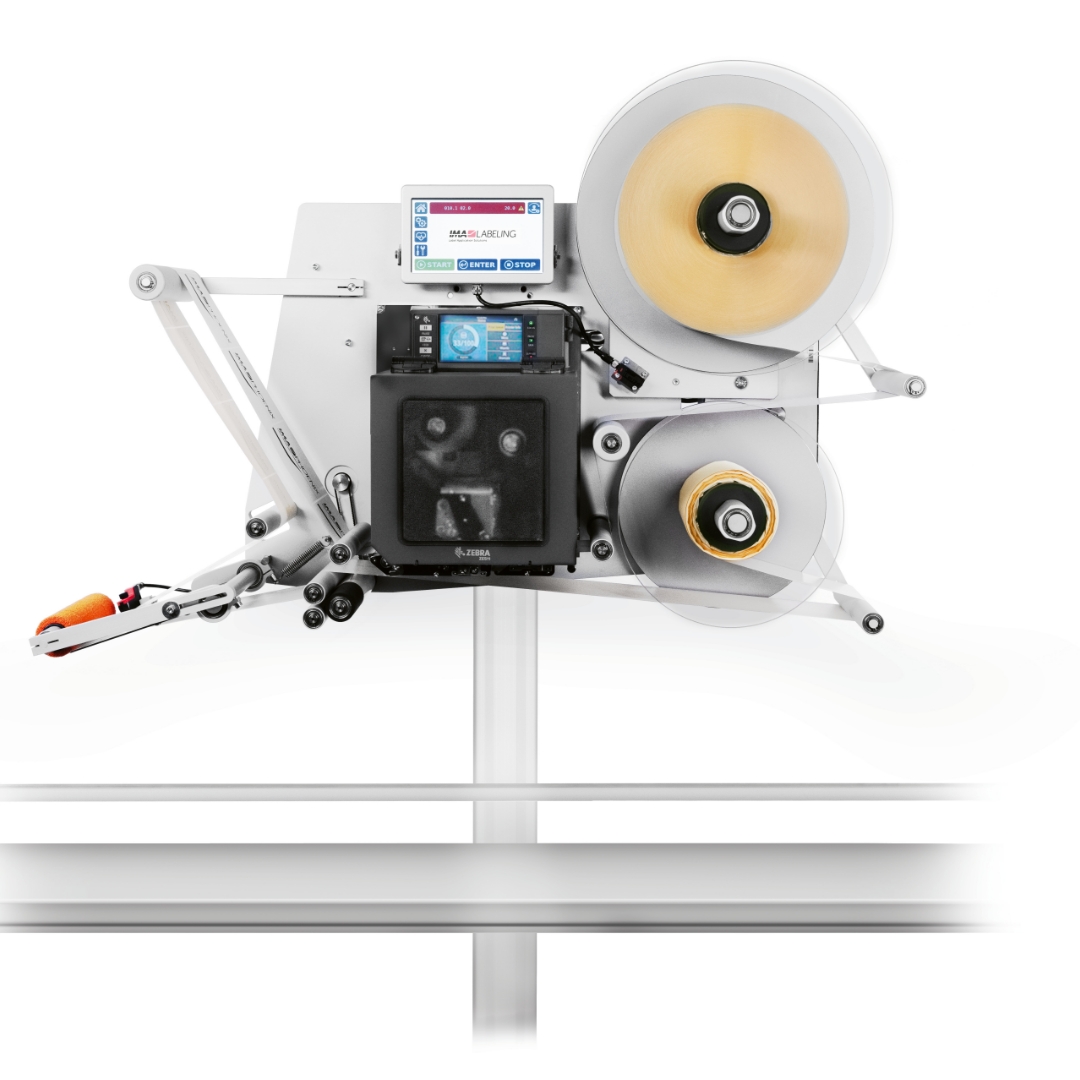

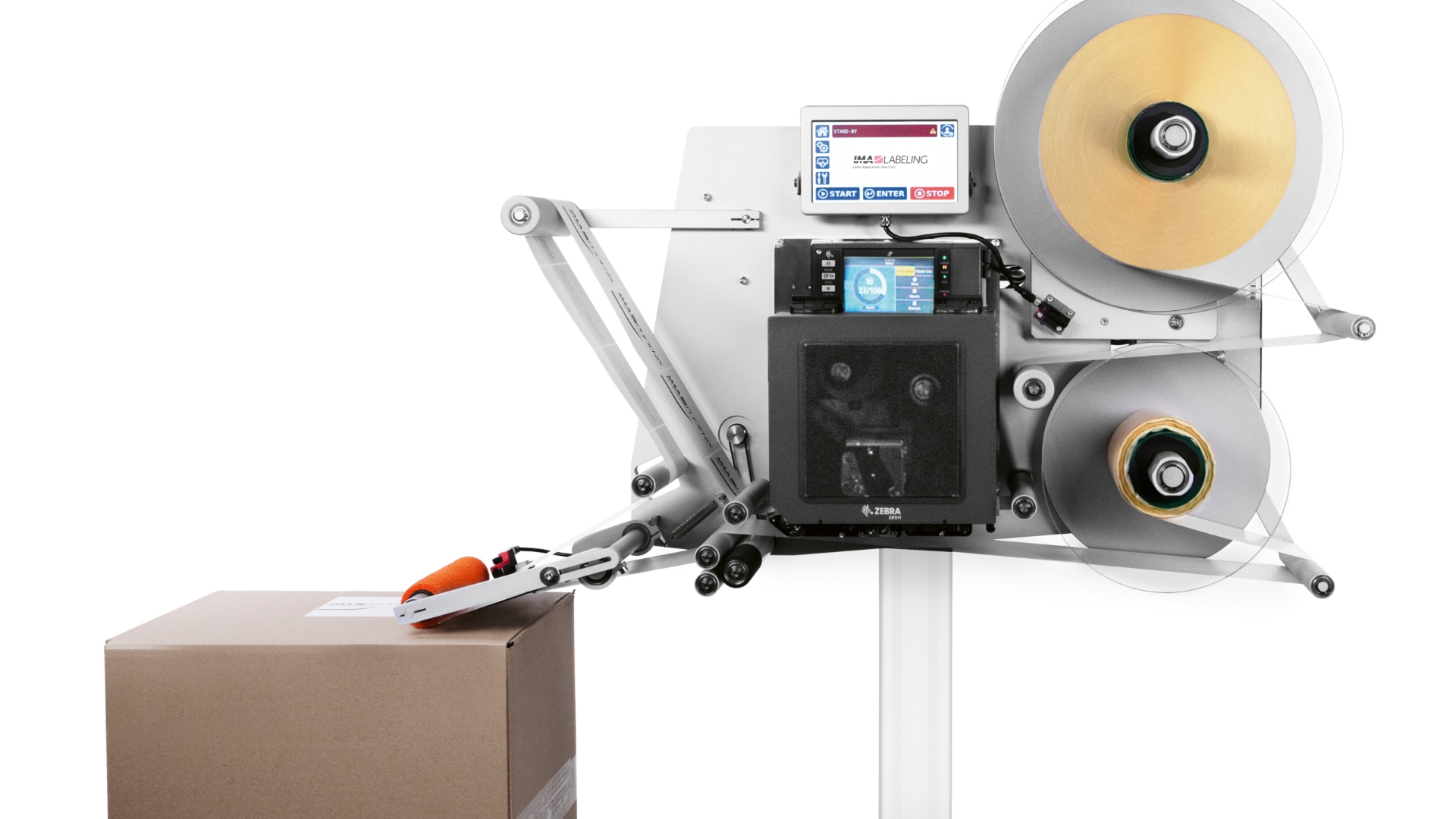

Fleximate eBlade Presentation

Always ready to apply.
FlexiMate eBlade uses a buffered wipe-on process to ensure stable, high-speed labeling with consistent label availability—even in dynamic production conditions.

Solution highlights

  1. Buffered labeling process

    A label buffer ensures continuous availability between printing and application.
    Maintaining stable performance even at variable production speeds.

  2. High-speed wipe-on application

    Designed for fast and efficient labeling on moving products. Delivering reliable performance in high-throughput environments.

  3. Smooth liner handling

    Optimized liner path ensures accurate and consistent label dispensing.
    Improving application reliability and reducing interruptions.

  4. Stable print-to-apply flow

    Printing and application are managed in a stable and controlled sequence.
    Ensuring consistent results without the need for real-time synchronization.

Top

Bottom

Side

Opposite Side

Technical information

FlexiMate eBlade4” Liner / 6” Liner
Available versionsRight or left
Peeling bladeFixed or spring loaded
Typical applicationOn moving products
Methods of applicationWipe-on
Side of applicationTop
Bottom
Side
Label sensorGap sensor, photocell
Accuracy of application+/- 1 mm typical
Rewinding capacityØ up to 250 mm
Maximum speed
of application		Up to 70 m/min
Ambient temperature5 – 35 °C
Environmental conditions20 – 90 % relative humidity with no condensation
Protection classIP 2X
User interfaceControl display, LCD, 20 x 2 lines and 5 buttons;
Control display, touch screen 800 x 480 px
Service interfaceLinkMate (on PC)
Standard connectorsM12 display connector
M12 low paper sensor connector
M12 primary product sensor connector
M12 secondary product sensor connector
M12 beacon light connector
USB connector
DB9 applicator unit connector
DB15 print engine connector
DB25 I/O interface connector
Optional connectorsEthernet connector
M12 encoder/analog connector
M12 bus extension connector
