Fleximate eBelt Print Apply

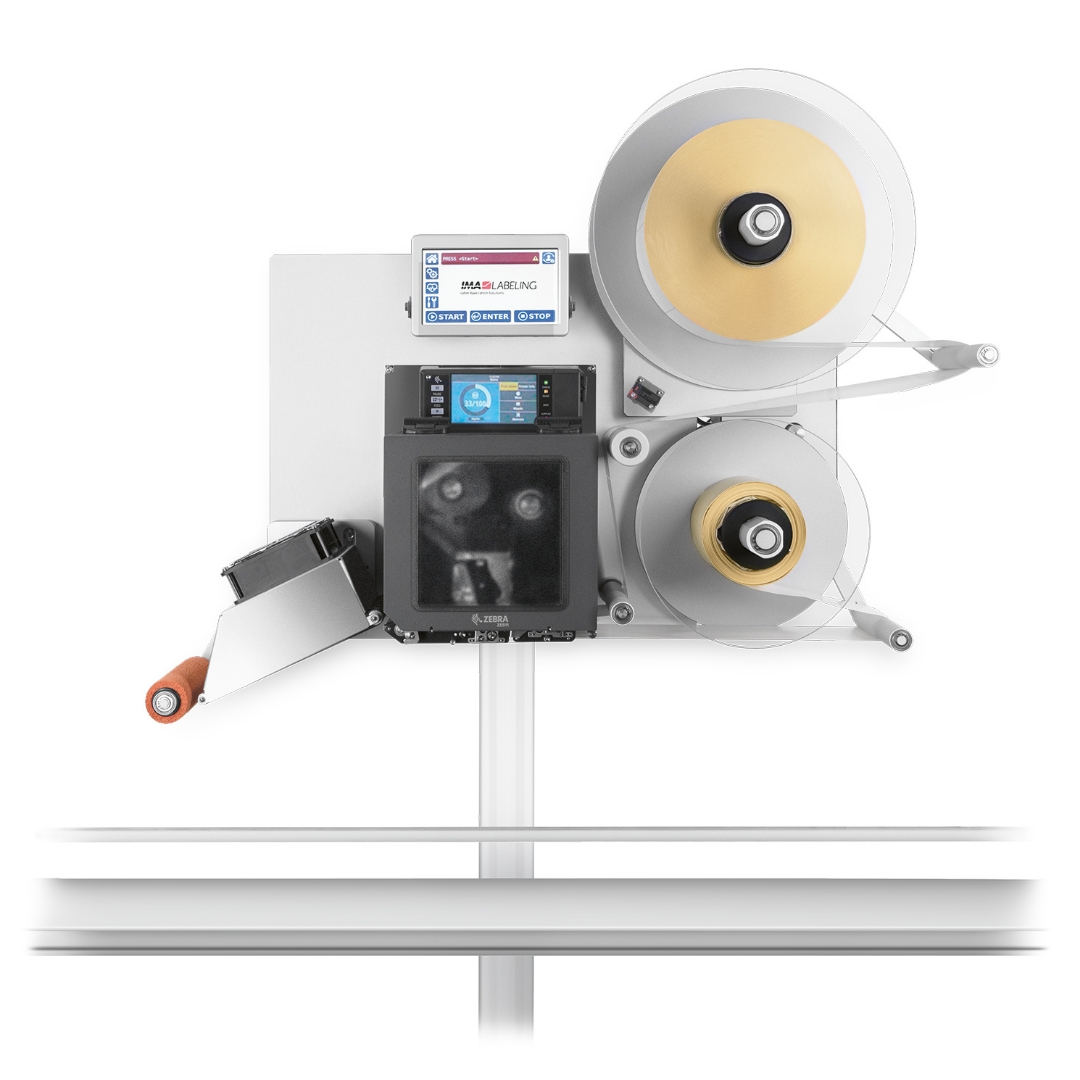

Solution overview

Full electric wipe on applicator

FlexiMate eBelt is a high-speed print & apply solution designed for maximum throughput and operational efficiency.
Its vacuum belt technology ensures continuous and precise label transfer from printing to application, enabling reliable labeling on high-capacity conveyor lines.
By separating the printing and application phases, the system maintains consistent print quality while reaching high production speeds.
The fully electric design removes the need for compressed air, reducing operating costs and simplifying system architecture.
Modular by design, FlexiMate eBelt adapts easily to different layouts and production requirements, ensuring flexible integration across multiple applications.

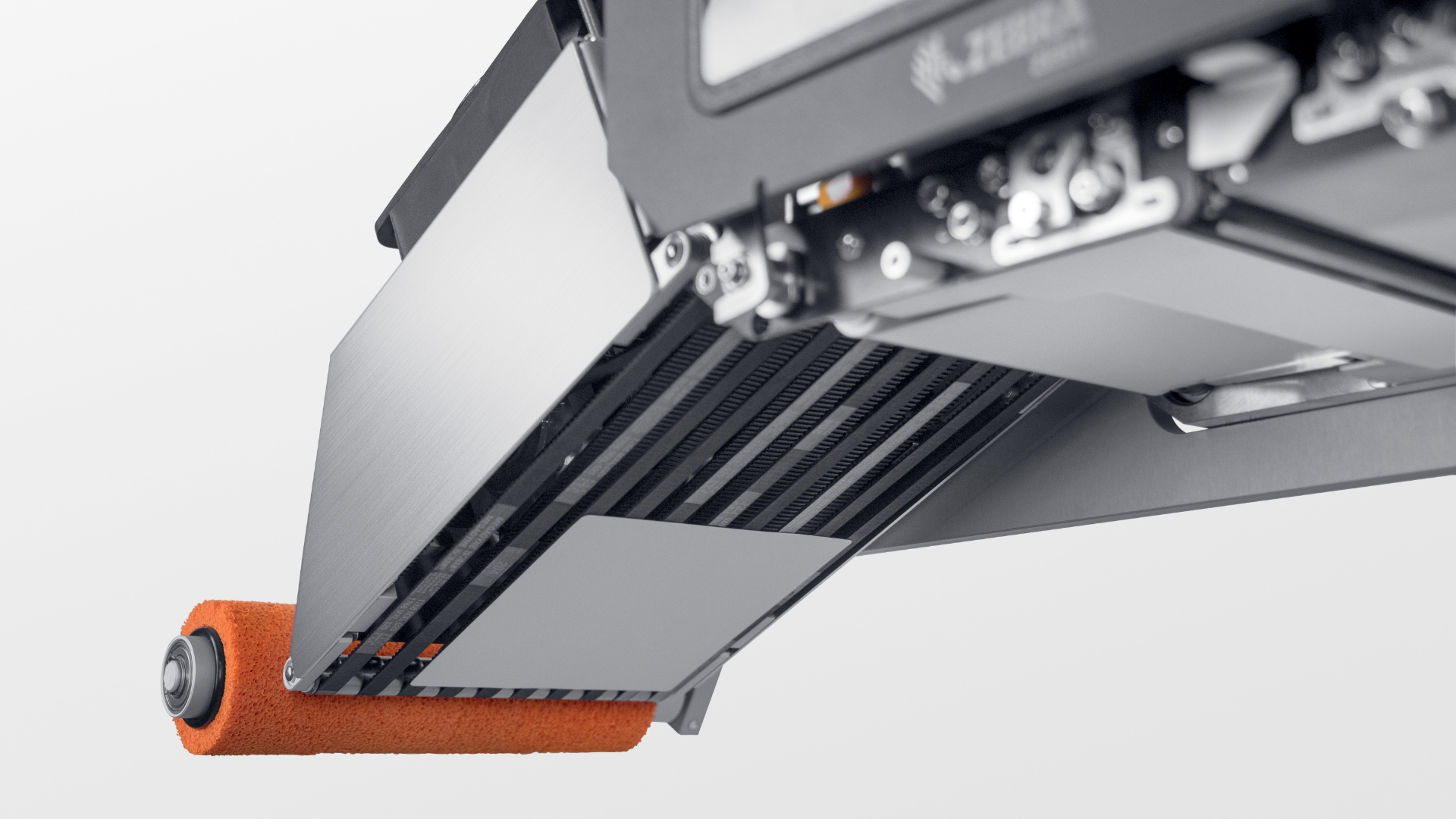

Fleximate eBelt Presentation

Continuous labeling, without interruption.
FlexiMate eBelt combines high-speed performance and vacuum belt technology to ensure smooth, precise label transfer across high-capacity production lines.

Solution highlights

  1. Flow-driven labeling

    Vacuum belt technology ensures a smooth and uninterrupted transfer from printing to application.
    Maximizing throughput while maintaining consistent performance.

  2. High-speed performance

    Designed for high-capacity production lines, enabling fast and reliable labeling.
    Supporting demanding throughput requirements without compromising print quality.

  3. Smooth print-to-apply flow

    Printing and application work in a smooth, continuous sequence.
    Ensuring consistent print quality and stable performance at high speed.

  4. Fully electric design

    Operates without compressed air, reducing energy consumption and system complexity.
    Improving efficiency while minimizing maintenance needs.

Top

Bottom

Side

Opposite Side

Technical information

FlexiMate eBelt4” Liner / 6” Liner
Available versionsRight or left
Typical applicationOn moving products
Methods of applicationWipe-on
Side of applicationTop
Bottom
Side
Accuracy of application+/- 2 mm
Unwinding capacityØ up to 350 mm
Maximum speed
of application		Up to 70 m/min
Ambient temperature5 – 35 °C
Environmental conditions20 – 90 % relative humidity with no condensation
Protection classIP 2X
User interface800 x 480 px touch screen display control panel
Service interfaceLinkMate (on PC)
Standard connectorsM12 display connector
M12 low paper sensor connector
M12 primary product sensor connector
M12 secondary product sensor connector
M12 beacon light connector
USB connector
DB9 applicator unit connector
DB15 print engine connector
DB25 I/O interface connector
Optional connectorsEthernet connector
M12 encoder/analog connector
M12 bus extension connector
